Bucket Elevator for Rubber Kneader Rubber Mixing Mill/Convey or /Lifter
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Application
It is a kind of Transport Machinery.As an auxiliary engine of Rubber Kneader,it is used for transporting the materials discharged from Rubber Kneader to rubber mixing mill,rubber sheeting mill,extruder or some other machines for processing,it is a component of mixing rubber(plastic) production line.
Working Principles:
1.The machine consists of motor, reducer and chain drive composed of mechanical transmission system, guide frame, hopper, electric control and other components.
2.The hopper is driven by the drive system to move up and down along the guide frame, and the hopper is raised to the top and the discharge point is flipped and lowered to the starting position, a travel switch is provided to control the operation of the hopper.
When the hopper begins to run, the hopper is raised to a high speed and the hopper begins to tilt. Before the material is discharged, the hopper is slow to ensure smooth operation. When the return stroke begins, the hopper starts to run at a high speed. When it approaches the bottom, change to slow speed,this ensures that the hopper runs smoothly and reliably.
Features:
1. Simple design and easy operate. It will work when power supply is provided.
2. The machine adopts welding structure and is annealed to remove stress.
3. Perfect self-lock and stop devic, which can ensure the safety of operator and protect the machine.
4. The heigh of the control cabinet is suitbal for the operature
5. Entire pedestal is convenient for transportatio
6. The design is inflexible, and can satisfy the customer's requirements easily.
Main technical parameters
| Mode Terms | TS75 | TS110 | TS50 |
| Lift speed (m/min) | 9.5 | 9.5 | 9.5 |
| capacity(kg/batch) | 90 | 130 | 160 |
| Motor power (kw) | 1.5 | 1.5 | 3 |
| Dimension (mm) | 3780 × 770 ×2260 | 3780 ×875×2260 | 3870 ×875×2350 |
| Weitht (kg) | 540 | 560 | 800 |

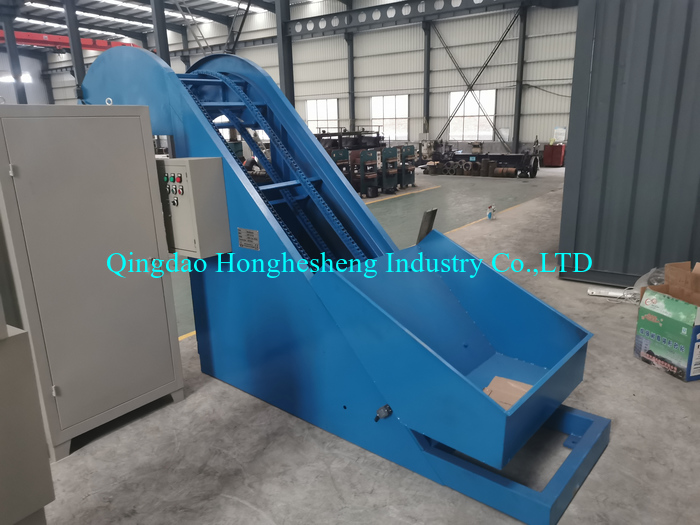

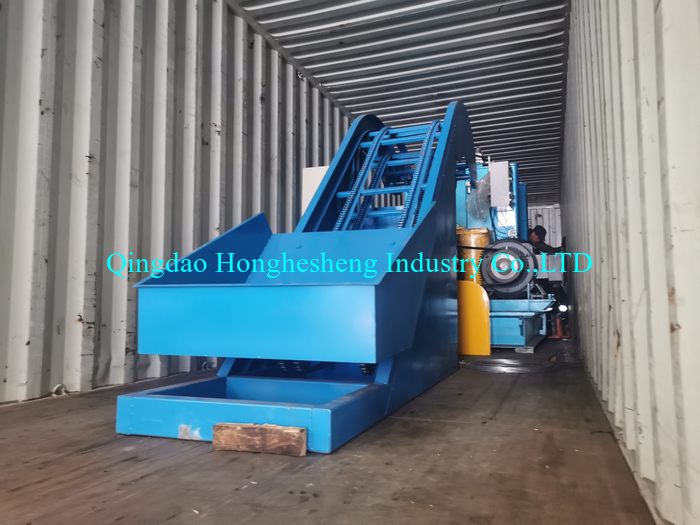

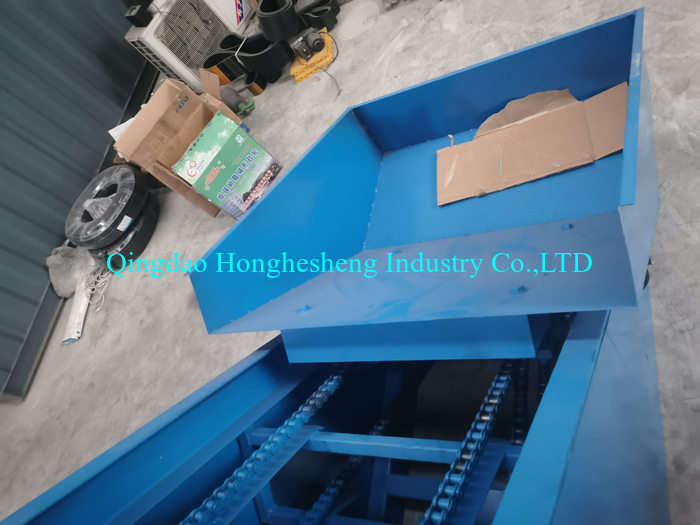

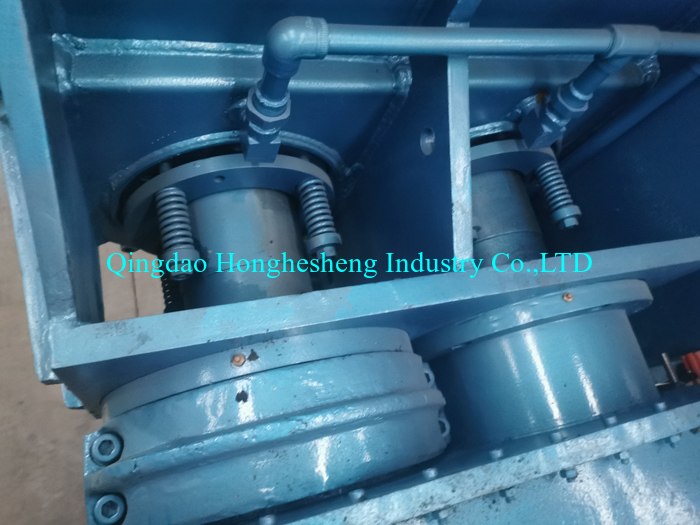

Detailed Pictures
